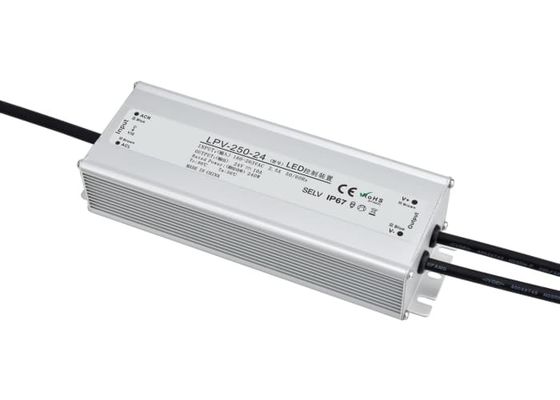

IP67 Waterproof Input 230VAC Switching Power Supply Output 12V/24V/48V 250W LED Power Supply
| Lieu d'origine | Shenzhen, Chine |
|---|---|
| Nom de marque | Miracle Bean |
| Certification | CE ROSH EMC |
| Numéro de modèle | XH-LPV-250W |
| Quantité de commande min | 1 pièce |
| Prix | negotiate |
| Détails d'emballage | Dessin animé ou en bois |
| Délai de livraison | 5-15 jours |
| Conditions de paiement | T / T, Western Union |
| Capacité d'approvisionnement | 10000pieces par mois |
Contactez-moi pour des échantillons gratuits et des coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Si vous avez des préoccupations, nous fournissons une aide en ligne 24 heures sur 24.
xDétails sur le produit
| Nom des articles | Alimentation électrique | Matériau de coquille | Alliage en aluminium |
|---|---|---|---|
| Classe IP | IP67 / IP65 | température de pépins | -20 ° C à 60 ° C |
| Taille du produit | 205 * 69 * 43 mm | les certifications | CE / FCC / ROHS |
| Power utput | 250W | Couleur | Argent |
| Protection | Court-circuit / température supérieure / charge | Efficacité | 91% |
| Mettre en évidence | Alimentation de l'énergie IP67 menée imperméable,Alimentation à découpage 230VAC,Alimentation 12V 24V 48V 250W |
||
Description de produit
IP67 Waterproof Input 230VAC Switching Power Supply Output 12V/24V/48V 250W LED Power Supply
Product Description
| Modle | XH-LPV-250W |
| Output current range | 12V/24V/48V |
| DC output power | 250W |
| AC Input Current |
2.5A/230VAC |
| Store temperature and humidity | -40~+85°10-95% RH |
| Working temperature and humidity | -20~+60 centigrades 20-90% RH non-condensing(waterproof) |
| Dimesion |
205*69*43mm(L*W*H) |
| Efficiency |
91% |
| Weight |
0.85kg |
Description
The XH-LPV-250W Series is a waterproof AC-to-DC LED driver power supply designed with constant voltage and constant power output. It operates on a wide AC input voltage range of 180~264VAC and offers a full range of output options including 12V, 24V, 36V, and 48V.
With a conversion efficiency of up to 93%, it features a fan-less design that operates via natural air convection cooling within a case temperature range of -20°C to +60°C. The metal housing and high IP65/IP67 protection rating make the XH-LPV-250W Series suitable for both indoor and outdoor applications. It is equipped with a long-life aluminum electrolytic capacitor rated at 105°C.
The XH-LPV-250W comes with comprehensive protection functions and a 5G vibration resistance capability. It complies with safety regulations such as UL1012 and EN60950-1, and meets the energy-saving requirements of next-generation LED lighting, providing a cost-effective solution for various LED lighting applications.
Key Advantages
- Constant Voltage & Constant Power Mode Output.
- 180~264VAC – Wide AC input voltage range.
- Protection Features: Short circuit / Overload / Overvoltage / Over-temperature protection.
- Natural Air Cooling.
- Fully Enclosed Aluminum Housing.
- Full Potting, meets IP65/IP67 protection rating, suitable for both indoor and outdoor installation.
- Suitable for dry, humid, and rainy environments.
- 100% Full-Load Burn-in Tested.
- High efficiency, long lifespan, and high reliability.
- 3-year warranty
Our Advantages
- We have more than 20 years’ experience
- More than 100 foreign customers which have cooperated with our company for more than 3 years
- Small MOQ, helping you to cooperate with our company step by step.
- Warranty: 3 years warranty, as soon as we confirm the defective products,we will give new ones to customers in the following order
- Solving the problems for customers directly.
Our Services
- Replied in 24hrs
- Answer all your enquires in fluent English
- OEM & ODM are welcome
- Distributoership are offered for your unique design and some our current models
- Protection of your sales area, ideas of design and all your private informaton
- Provide lifelong warranty
- Fast delivery time: We will keep stock for some quantity of products;For samples orders,we can send out the products as soon as we get the payment;For big orders,usually the delivery time is within 7 working days;OEM and ODM orders,within 15 working days.
FAQ
1.Q;Why do you choose us?
A:We have over 20 years experience of design and produce led products for customers all over the world. We offer custom made led products with free design,and we have own factory as well as a research and design team,which can meet the diverse needs of our customers.
2.Q:Can I have a sample order for LED Power Supply?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
3.Q:Do you have any MOQ limit for LED Power Supply orders?
A: Low MOQ, 1pc for sample checking is available
A: Low MOQ, 1pc for sample checking is available
4. Q: How long is the warranty period?
A: 3 Years
5. Q: How long is the delivery time?
A: For sample orders, we can send out the products as soon as we get the payment; For big orders, usually the delivery time is within 7 working days;OEM and ODM orders, within 15 working days.
