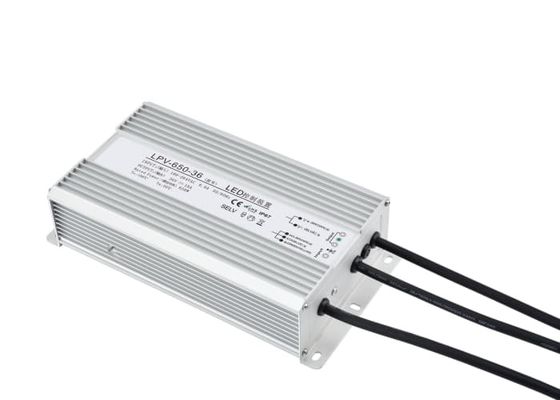

Waterproof LED Driver 24V/36V/48V/60V 650W Power Supply for LED Lamp for LED Lighting Application
| Lieu d'origine | Guangdong, Chine |
|---|---|
| Nom de marque | Miracle Bean |
| Certification | CE ROSH EMC |
| Numéro de modèle | Le modèle XH-LPV-650W |
| Quantité de commande min | 1 pièce |
| Prix | negotiate |
| Détails d'emballage | Dessin animé ou en bois |
| Délai de livraison | 5-15 jours |
| Conditions de paiement | T / T, Western Union |
| Capacité d'approvisionnement | 10000pieces par mois |
Contactez-moi pour des échantillons gratuits et des coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Si vous avez des préoccupations, nous fournissons une aide en ligne 24 heures sur 24.
xDétails sur le produit
| Classe IP | IP67 / IP65 | Nom des articles | Alimentation LED |
|---|---|---|---|
| Matériau de coquille | Alliage en aluminium | Température de fonctionnement | -20 ° C à 60 ° C |
| Taille du produit | 235*120*56mm | les certifications | CE / FCC / ROHS |
| Puissance de sortie | 650W | Couleur | Argent |
| Protection | Court-circuit / température supérieure / charge | Efficacité | 94% |
| Mettre en évidence | Waterproof LED Driver 650W,24V LED Power Supply,Waterproof LED Lighting Power |
||
Description de produit
Waterproof LED Driver 24V/36V/48V/60V 650W Power Supply for LED Lamp for LED Lighting Application
Product Description
| Modle | XH-LPV-650W |
| Output current range | 24V/36V/48V/60V |
| DC output power | 650W |
| AC Input Current |
6.0A/230VAC |
| Store temperature and humidity | -40~+85°10-95% RH |
| Working temperature and humidity | -20~+60 centigrades 20-90% RH non-condensing(waterproof) |
| Dimesion |
235*120*56mm(L*W*H) |
| Efficiency |
94% |
| Weight |
2.35kg |
Description
The XH-LPV-650W series is a waterproof AC-to-DC LED driver. It is designed with constant voltage and constant power output, and operates on an AC input voltage ranging from 180V to 264V. The full series offers output voltages of 24V, 36V, 48V and 60V.
Boasting a conversion efficiency of up to 94.5% and a fanless structure, this driver can work via natural air cooling, with its case temperature staying between -20℃ and +60℃. Its metal enclosure and high IP protection class (IP65/IP67) allow the XH-LPV-650W series to be used in both indoor and outdoor scenarios. It also incorporates a 105℃ long-life aluminum electrolytic capacitor.
The XH-LPV-650W is equipped with comprehensive protection features and can resist 5G vibration. It meets safety standards like UL1012 and EN60950-1, and satisfies the energy-saving demands of next-generation LED lighting, serving as a cost-effective solution for various LED lighting applications
Features
- AC input voltage covers the range of 180~264VAC
- Output operates in constant voltage and constant power modes
- Protection functions included: Short circuit, overload, overvoltage, overtemperature protection, and more
- Cooling method: Natural air convection
- Aluminum housing with full protection design
- Full potting process applied, meeting IP65/IP67 protection standards, and installable both indoors and outdoors
- Suitable for use in dry, humid, and rain-exposed environments
- Undergoes 100% full-load burn-in testing
- Offers high efficiency, long service life, and strong reliability
- Backed by a 3-year quality warranty
Our Advantages
- We have more than 20 years’ experience
- More than 100 foreign customers which have cooperated with our company for more than 3 years
- Small MOQ, helping you to cooperate with our company step by step.
- Warranty: 3 years warranty, as soon as we confirm the defective products,we will give new ones to customers in the following order
- Solving the problems for customers directly.
Our Services
- Replied in 24hrs
- Answer all your enquires in fluent English
- OEM & ODM are welcome
- Distributoership are offered for your unique design and some our current models
- Protection of your sales area, ideas of design and all your private informaton
- Provide lifelong warranty
- Fast delivery time: We will keep stock for some quantity of products;For samples orders,we can send out the products as soon as we get the payment;For big orders,usually the delivery time is within 7 working days;OEM and ODM orders,within 15 working days.
FAQ
1.Q;Why do you choose us?
A:We have over 20 years experience of design and produce led products for customers all over the world. We offer custom made led products with free design,and we have own factory as well as a research and design team,which can meet the diverse needs of our customers.
2.Q:Can I have a sample order for LED Power Supply?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
3.Q:Do you have any MOQ limit for LED Power Supply orders?
A: Low MOQ, 1pc for sample checking is available
A: Low MOQ, 1pc for sample checking is available
